Free DELL EMC DES-6322 Exam Questions

Eleanor2022-03-23T06:07:40+00:00

All candidates who want to earn Specialist – Implementation Engineer, VxRail Version 2.0 certification need to complete the requirements and exams as follows:

1. Achieve one of the following Associate level certifications:

Associate – Converged Systems and Hybrid Cloud Version 2.0
Associate – Cloud Infrastructure and Services Version 3.0

2. Pass DES-6322 Specialist – Implementation Engineer, VxRail Exam

DES-6322, as the specialist-level exam for Specialist – Implementation Engineer, VxRail (DCS-IE) certification, has two parts to complete. Part 1 contains 54 questions which need to be answered in 90 minutes; Part 2 contains 6 simulations which need to be answered in 30 minutes. Only both the two parts are completed for passing DES-6322 exam. The good way to prepare for DES-6322 exam is to choose valid study materials online.

Free DELL EMC DES-6322 Exam Questions Are Available Below:

Page 1 of 4

1. Which VxRail model can only be installed with static rack rails?

D Series

P Series

S Series

G Series

2. During the activation of Internal SRS, the implementation engineer receives a message that the deployment has failed

What is a possible cause?

SRS VE Gateway on the same subnet as the VxRail Manager

VxRail status already set to installed' in IB database

Site ID mismatch between the IB database and the SRS Wizard

Witness Gateway not configured following Dell best practices

3. The VxRail Deployment Wizard is being used on a VxRail cluster with a customer-supplied VDS .

Which settings must be used to ensure successful installation?

Use the VxRail vCenter Server Upload a configuration file (JSON)

Join an external vCenter Server Use the step-by-step method

Use the VxRail vCenter Server Use the step-by-step method

Join an external vCenter Server Upload a configuration file (JSON)

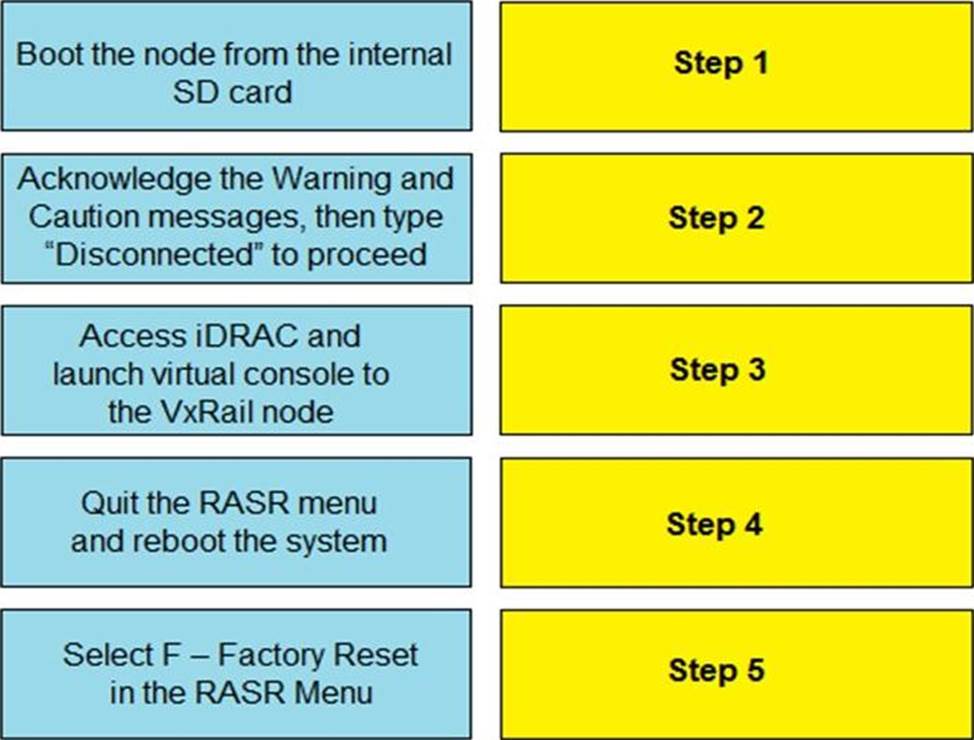

4. DRAG DROP

What is the correct sequence of steps to perform a RASR Factory Reset using an SD card?

5. 1.What is validated by running the Proactive VM Creation test in vCenter on a VxRail cluster?

vSAN operates successfully

Network firewalls are configured correctly

vSAN has sufficient storage capacity

Network performance is sufficient

6. When preparing to generate an As-Built Configuration Report, it is determined that the VxRail Configuration JSON file was not saved from the Deployment Wizard .

What actions must be taken to retrieve the JSON file?

SSH to the VxRail Manager VM with the mystic user SU to root Go to the /opt/VxRail/config directory SCP the initial-config json file to a local location

Log in to vCenter with the vSphere Client with the vCenter Server Management user Go to Monitor > VxRail > Last Configuration Data Sent Use the Download option

Open an FTP connection to the VxRail Manager VM with the mystic user Go to the /var/lib/vmware-marvin directory GET the config-initial json file

Log in to vCenter with the vSphere Client with the vCenter Administration user Go to Configure > VxRail > System Use the Product Documentation option

7. A systems engineer is performing a VxRail upgrade in a VMware Horizon VDI cluster All hosts are put in Maintenance Mode.

What action does the engineer need to perform on each host once the upgrade has been completed?

From the Connection Server run IcMaintcmd to delete the parent VMs and exit Maintenance Mode for each host

From the Connection Server, run IcMaintcmd to take the hosts out of Maintenance Mode and reboot them

Set the InstantClone Maintenance annotation value to the original value

Set the InstantClone Maintenance annotation value to 2

8. Which two files are used to automate VxRail deployment and validate the network configuration?

Appliance JSON file PEQ data file

VxRail Configuration Portal PEQ data file

VxRail Test Plan SPEQ

Appliance JSON file SPEQ

9. What is the minimum number of VxRail nodes required for a vSAN storage policy with RAID-6 (Erasure Coding)?

10. Which command can be used from the VxRail Manager VM to restart the loudmouth daemon?

systemctl restart loudmouth

/usr/lib/vmware/loudmouth/bin/loudmouthd restart

/etc/init.d/loudmouth restart

systemctl restart vmware-loudmouth

Page 2 of 4

11. A VxRail Manager VM must be configured as follows:

* IP address: 192 168.10.16

* Net mask: 255.255.255.0

* Gateway: 192 168 10 254

Which command must be used?

vxrail-network-config --ip 192 168 10.16-netmask 255.255.255.0-gateway 192 168 10.254

vxrail-prrmary -config --ip 192 168 10 16 -netmask 255 255 255 0 -gateway 192 168 10 254

vxrail-primary -config --vxrail-address 192.168.10 16 --vxrail-netmask 255 255 255 0 - vxrail-gateway 192.168,10 254

vxrail-network -config --vxrail-address 192.166 10 16 --vxrail-netmask 255 255.255 0 -- vxrail-gateway 192.168.10.254

12. CORRECT TEXT

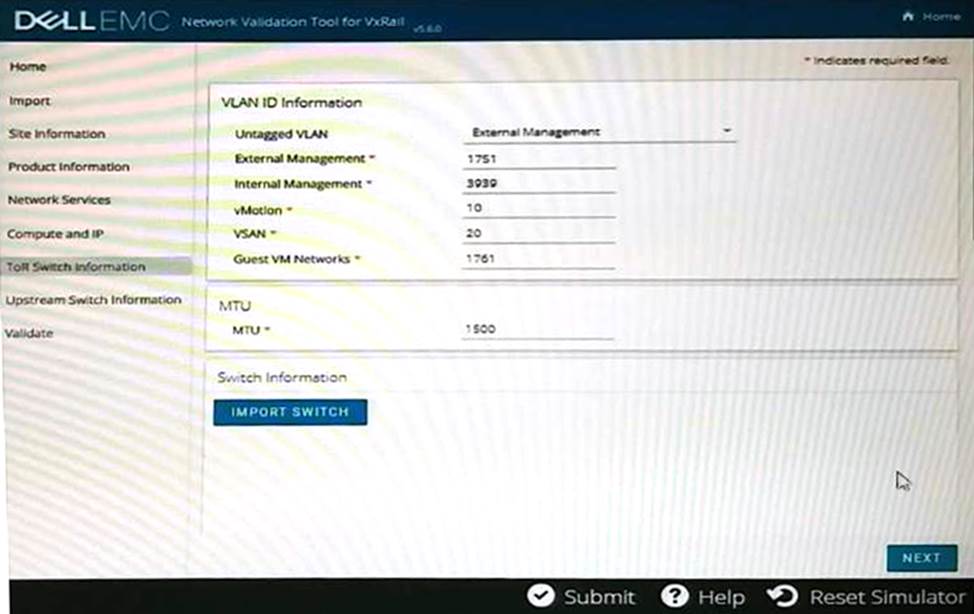

A VxRail implementation engineer is validating the network environment with NVT. The proposed switch configuration is shown in the exhibit. The ToR Switch information file is available.

Use the VxRail simulator to set up NVT for switch validation. Import the switch Information and tag the ports based on the exhibit.

13. Which service determines the primary node after powering on the VxRail nodes during the deployment of a VxRail cluster?

Loudmouth

Election

Marvin

Mystic

14. A company needs to enable vSphere GPU capabilities on their VxRail cluster. To do so, they need to purchase a specific entitlement.

What licensing satisfies this requirement?

vSphere Enterprise Plus

vSAN Enterprise Plus Edition

vSAN Advanced Edition

vSphere Standard

15. What data protection option is included with VxRail?

vSphere Replication NetWorker

PowerProtect Software Data Domain Cloud Tier

RecoverPoint for VM vSphere Replication

RecoverPoint for VM Avamar

16. An implementation engineer is configuring External SRS.

Where can they find the installation files for SRS VE?

VxRail Support Matrix

VxRail Manager

SolVe Online

Dell Support Page

17. What is the maximum number of supported nodes for a VxRail cluster running on a 1 GbE network?

18. An implementation engineer is tasked with setting up RecoverPoint for VMs on a new 4-node E Series VxRail duster How many VMs are licensed to be protected on the cluster?

19. A planned VxRail Stretched Cluster will have four All-Flash nodes at each site

What is the recommended storage policy to ensure cross-site and local protection, using storage as efficiently as possible?

Site disaster tolerance - None - keep data on Preferred (stretched cluster) Failures to tolerate - 1 failure - RAID-5 (Erasure Coding)

Site disaster tolerance - Dual site mirroring (stretched cluster) Failures to tolerate - 1 failure - RAID-5 (Erasure Coding)

Site disaster tolerance - Dual site mirroring (stretched cluster) Failures to tolerate - 1 failure - RAID-1 (Mirroring)

Site disaster tolerance - Dual site mirroring (stretched cluster) Failures to tolerate - no data redundancy

20. Which command is used to restart the Loudmouth process on an ESXi node?

/usr/IibAmiware/loudmouth/bin/loudmouthd restart

systemcti restart loudmouth

/etc/int.d/loudmouth restart

systemcti restart vmware-loudmouth

Page 3 of 4

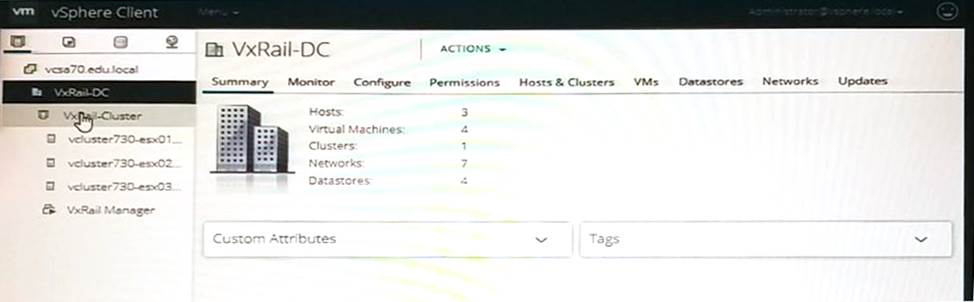

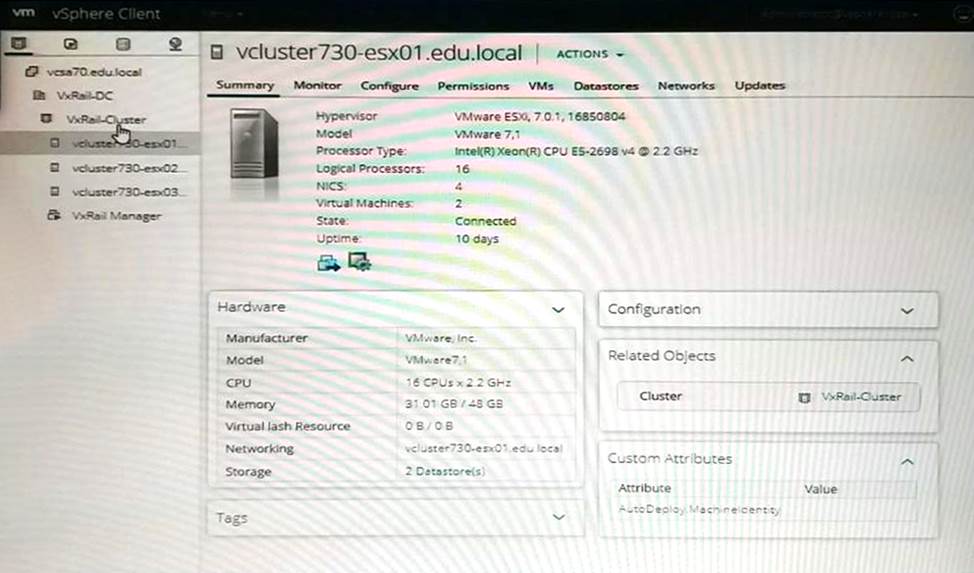

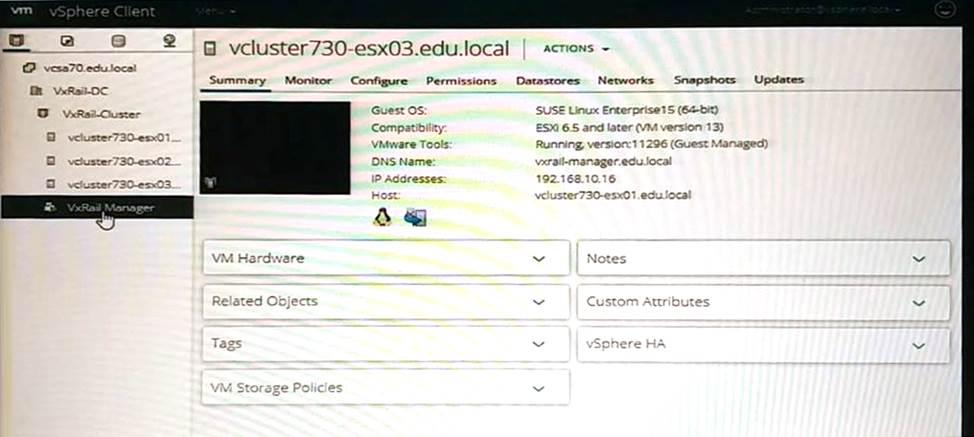

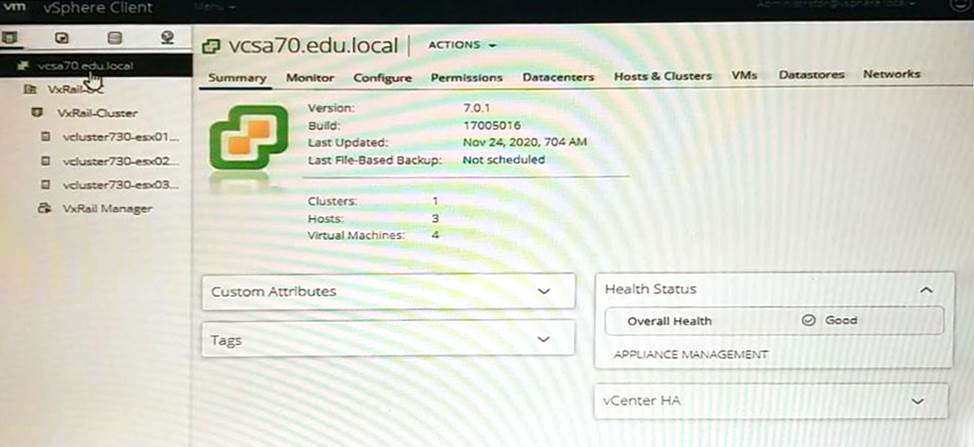

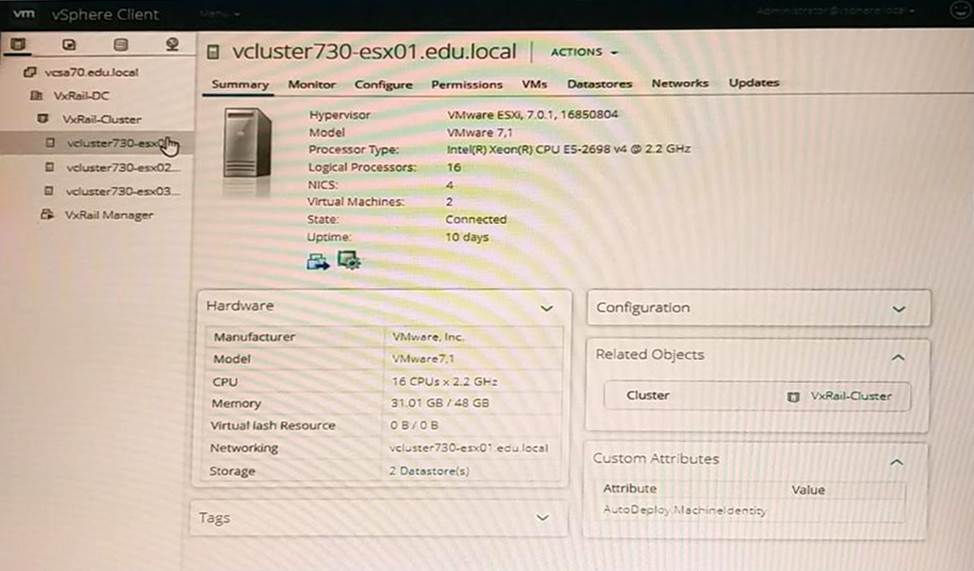

21. An implementation engineer is performing a precheck on a VxRail cluster before expansion. During validation, they find out that the host is not compatible.

Use the VxRail simulator to describe why the host is Incompatible.

Note: It is necessary to close (x) the simulator window before you can select a response to this question.

bmc and bios are running older versions

Insufficient number of vSphere licenses

Firmware of ESXi host needs to be updated

Invalid vCenter 5erver license

22. In addition to hardware monitoring, what is the purpose of the Dell PTAgent service on a VxRail node?

Hardware discovery and firmware installation

VxRail node discovery and software upgrades

BOSS upgrade and firmware installation

Hardware discovery and VxRail VIB installation

23. A VxRail Test Plan has been completed

What is the protocol for recording the results'?

With the implementation team, complete and document each test, test date, and a screenshot of results

In front of a customer, complete each test and document the test date

With the implementation team, complete each test and document the test date

In front of a customer, complete and document each test, test date, and a screenshot of results

24. Which series of VxRail nodes supports either Intel or AMD processors and either hybrid or All-Flash storage?

G Series

D Series

E Series

V Series

25. What is a consideration when performing a VxRail software upgrade from version 4.7.xxx to version 7.0.xxx?

External vCenter server must be upgraded after the VxRail is upgraded

vCenter Server requires a temporary IP address on a different subnet before the upgrade

Secure boot must be enabled on the ESXi hosts for a successful upgrade

VxRail Manager VM must be changed to the default name to avoid an upgrade failure

26. Where can an administrator find steps to perform a manual verification of the customer network?

Customer Simplified Form

Dell EMC VxRail Network Planning Guide

Pre-Engagement Questionnaire (PEQ)

Dell Technologies SolVe Online

27. A VxRail cluster is being deployed in a DMZ environment .

What is the recommended deployment option?

External vCenter Server with customer-supplied VDS

External vCenter Server with VxRail-deployed VDS

Internal vCenter Server with internal DNS

Internal vCenter Server with external DNS

28. A VxRail cluster 4.7.xxx environment is managed by the internal vCenter Server. An implementation engineer plans to deploy a new VxRail cluster using the existing vCenter Server instance, then use the

customer-supplied VDS to manage both VxRail clusters.

What must be done?

Migrate the internal vCenter Server to an external vCenter Server, then merge the PSC

Upgrade the VxRail version from 4.7.xxx to 7.0.000

Migrate the internal vCenter Server to an external vCenter Server, then upgrade the VxRail 4.7.xxx to 7.0.100

Upgrade the internal vCenter Server to version 7.0

29. An implementation engineer is reviewing the customer requirements for a VxRail implementation. The customer has specified noncontiguous hostnames and IP addresses

What option should the engineer select in the VxRail Deployment Wizard to input the hostnames and IP addresses?

Autofill - with the correct incrementor

Advanced

Autofill - with the correct offset

Custom

30. An implementation engineer places a VxRail node into maintenance mode using the Ensure accessibility setting

What is the engineer likely planning to do?

Extensive maintenance

Temporary maintenance

Permanent removal of host from cluster

Shutdown of an entire cluster

Page 4 of 4

31. What is a consideration when adding nodes to a VxRail G Series chassis?

G560 and G410 nodes are permitted in the same chassis

In a full G Series chassis, all nodes must have 10GbE ports

Hybrid and All-Flash nodes are permitted, if in different chassis

All nodes in a G Series chassis must be identical

32. What is a valid 2-node VxRail cluster configuration?

2x 10 GbE and 2x 25 GbE in a switch configuration and external vCenter

2x 1 GbE and 2x 10 GbE in a direct-connect configuration and external vCenter

2x 1 GbE and 2x 10 GbE in a switch configuration and internal vCenter

2x 10 GbE and 2x 25 GbE in a direct-connect configuration and internal vCenter

33. Which VxRail model(s) has a non-mirrored IDSDM?

D560/F

All G Series

S570

All E Series

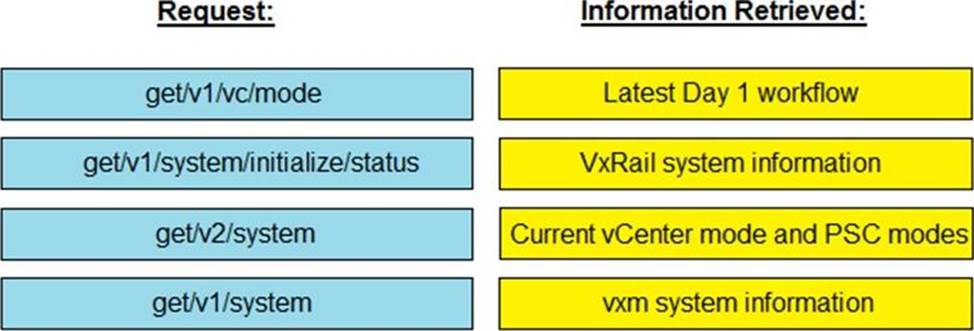

34. DRAG DROP

Match each VxRail API request with the information to be retrieved.

35. An implementation engineer logs in to the vSphere Client of a recently deployed VxRail cluster. They want to review the firmware versions on the VxRail nodes.

Which view should they use to gather this information?

Hosts and Clusters > VxRail Host > Configure > VxRail > iDRAC Configuration

Host and Clusters > VxRail Host > Monitor > VxRail > Physical View

Hosts and Clusters > VxRail Cluster > Monitor > VxRail > Appliances

Hosts and Clusters > VxRail Cluster > Configure > VxRail > System

36. What is validated by running the Proactive Network Performance test in vCenter on a VxRail cluster?

Latency and bandwidth measurement to the witness host

Network configuration and performance for vSAN

Network performance for virtual machines

Latency measurement between DCs for Stretched Clusters

37. What is a requirement for the vSAN Data-at-Rest Encryption?

All-Flash or AII-NVMe VxRail

VxRail with at least 3 nodes

External Key Management Server

External customer provided vCenter

38. What is a consideration when expanding a VxRail cluster? (Choose two.)

Mixing of All-Flash and all-NVMe nodes in a cluster is not allowed

Expanding a cluster to 64 nodes requires a 25 GbE network

G Series clusters can be expanded only with G Series nodes

1 GbE must be hybrid and single processor node type

39. What is a valid 2-node VxRail cluster configuration?

Series with 4x 25 GbE in a direct-connect configuration

Series with 4x 10 GbE in a switch configuration

Series with 4x 1 GbE in a direct-connect configuration

Series with 2x 25 GbE in a switch configuration

40. An implementation engineer is tasked with setting up RecoverPoint for VMs on a single G Series chassis .

How many VMs are licensed to be protected on the cluster?
