JN0-363 Service Provider Routing and Switching, Specialist (JNCIS-SP) certification exam is popular to verify your basic understanding of routing and switching technologies and related platform configuration and troubleshooting skills. You can have new JN0-363 dumps pdf to practice the accurate JN0-363 questions and answers for making good preparation. One can use Service Provider Routing and Switching, Specialist (JNCIS-SP) JN0-363 dumps pdf without limitations of place and time.

Before downloading the JN0-363 dumps pdf, you can check JN0-363 free demo questions:

Page 1 of 2

1. Which two statements are correct about IS-IS? (Choose two.)

A level 1 only router can never form an adjacency with a level 2 only router.

For level 2 adjacencies, the area IDs can be different.

For level 2 adjacencies, the area IDs must be the same.

A level 1 only router can form an adjacency with a level 2 only router.

2. What is the correct order of BGP attributes for active route selection?

next hop -> local preference -> AS path -> MED -> origin

next hop -> AS path -> local preference -> origin -> MED

next hop -> local preference -> AS path -> origin -> MED

next hop -> origin -> local preference -> AS path -> MED

3. What are two types of SlDs used in segment touting? (Choose two.)

node

adjacency

link

interface

4. Which statement is correct about IS-IS?

IS-IS is a distance vector routing protocol.

IS-IS is a path vector routing protocol.

IS-IS is a link-state routing protocol.

IS-IS is a classful routing protocol.

5. Interface ge-0/0/0.0 connecls yout network to your ISP. You want to advertise this interface address as an Internal route In OSPF without creating a neighbor with your ISP.

In this scenario, how is this task accomplished?

Remove interface ge-0/0/0.0 from OSP

Create a generated route for Interface ge-0/0/0.0.

Add ge-0/0/0.0 as a passive interface In OSP

Configure a static route for Interface ge-0/0/0.0.

6. You want to see a detailed list of all established BGP sessions.

In this scenario, what would be a valid command to accomplish this task?

show bgp neighbor

show bgp summary

show rouse receive-protocol bgp <neighbor IP address>

show rouse protocol bgp

7. 1.Which BGP attribute Is used to detect touting loops?

AS path

MED

local preference

next hop

8. Which new field is added to an IPv6 header as compared lo IPv4?

version

checksum

fragment offset

flow label

9. Which LSA type does an OSPF ABR use to advertise external routes generated by an NSSAASBR into the backbone?

Type 5

Type 7

Type 3

Type 1

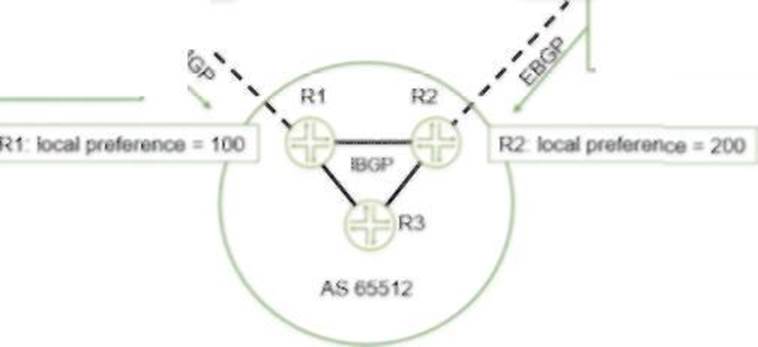

10. 20.1.0/24

Referring to the exhibit, which two statements are correct? (Choose two.)

Devices in AS 65512 will prefer ISP A for traffic destined to the 172.20.21.0/24 network.

Devices In AS 65512 will prefer ISP A for traffic destined to the 172.20.0.0/24 network.

Devices in AS 65512 will prefer ISP B for traffic destined to the 172.20.21.0/24 network.

Devices In AS 65512 will prefer ISP B for traffic destined to the 172.20.0.0/24 network.

Page 2 of 2

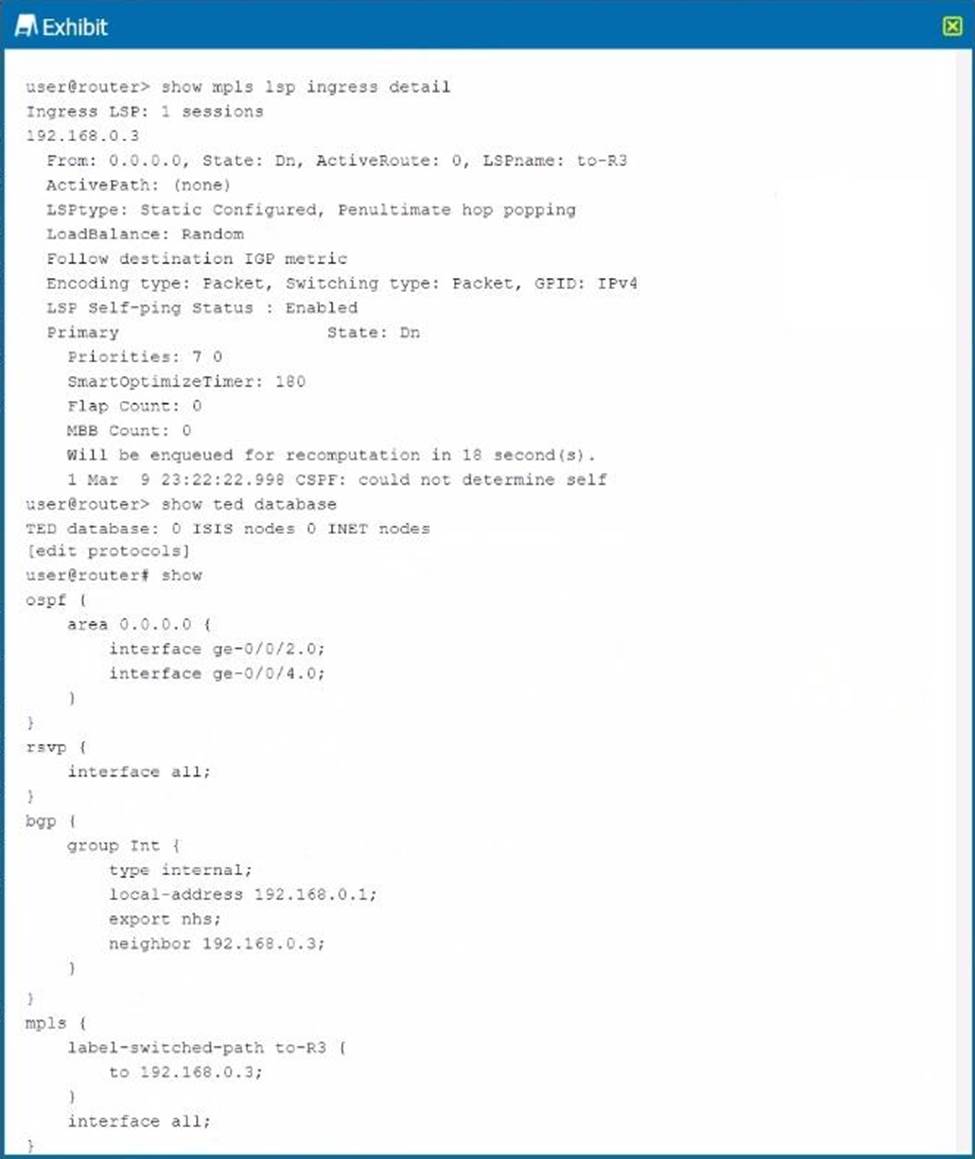

11. Exhibit

The LSP is not establishing correctly.

Referring to the exhibit, what should you do to solve the problem?

Enable traffic engineering for the OSPF protocol.

Enable traffic engineering for the IS-IS protocol.

Enable traffic engineering for the BGP protocol.

Enable traffic engineering for the RSVP protocol.

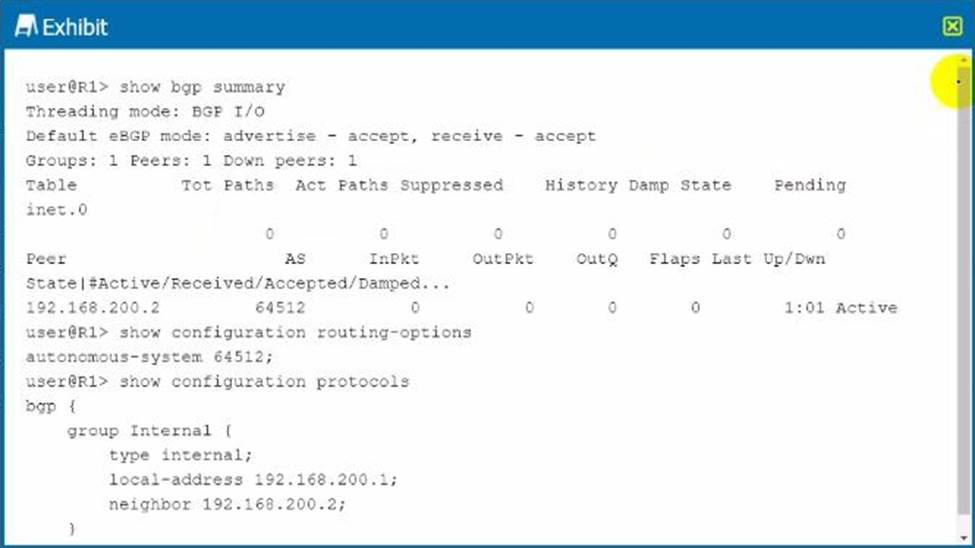

12. Exhibit

Referring to the exhibit, internal BGP between R1 and R2 is not establishing.

What is the problem In this scenario?

R1 does not have a route to 192.168.200.2.

R1 and R2 must each have unique AS numbers.

R1 needs to be configured with an explicit router I

R1 needs to be configured with a next-hop self policy.

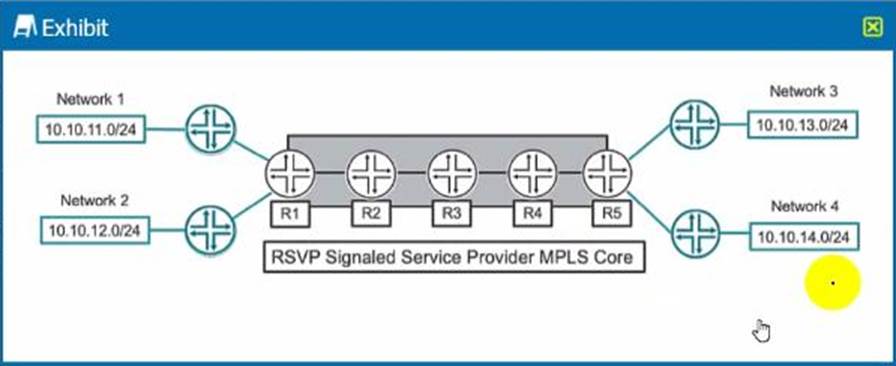

13. Exhibit

Which two statements are correct about the service provider MPLS network shown in the exhibit? (Choose two.)

R3 is considered a P router.

R3 is considered a PE router.

R3 is considered a transit router.

R3 is considered an ingress router.

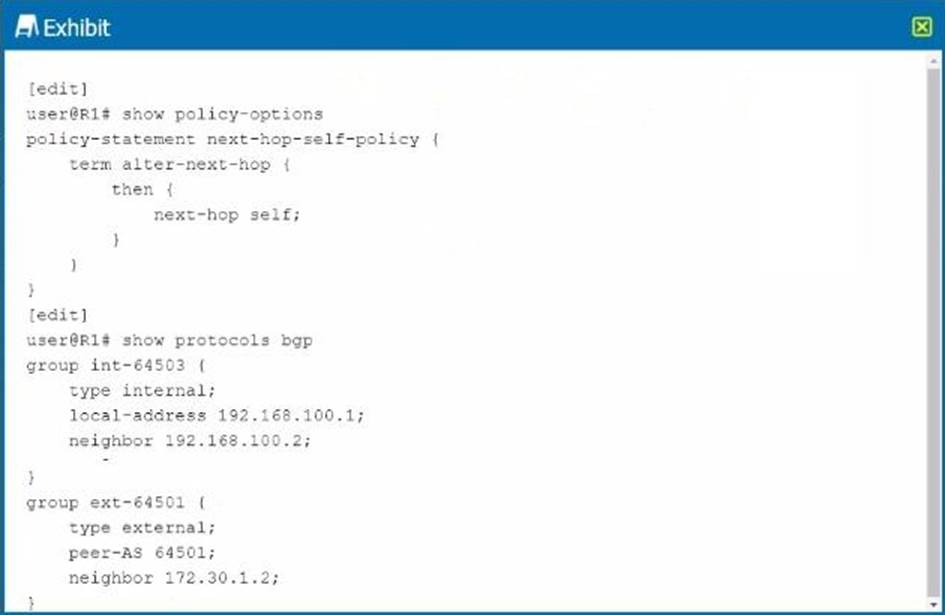

14. Exhibit

Referring to the exhibit, where should next-hop-self-policy be applied to alter the next-hop value?

The policy is applied as an export policy for the group int-64503.

The policy is applied as an export policy for the group ext-64501.

The policy is applied as an import policy for the group int- 64 503.

The policy is applied as an Import policy for the group ext-64501.

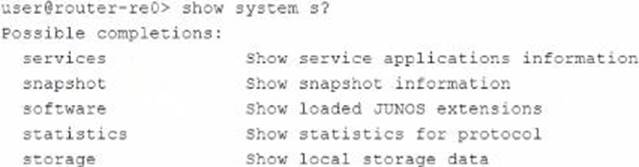

15. Exhibit

You have configured graceful RE switchover (GRES), however you cannot complete the show system switchover command.

Referring to the exhibit, what is the problem?

The command is only available if non-stop routing is enabled.

The command is only available on the backup Routing Engine.

The command is only available If a backup router is configured.

The command is only available If graceful restart is enabled.

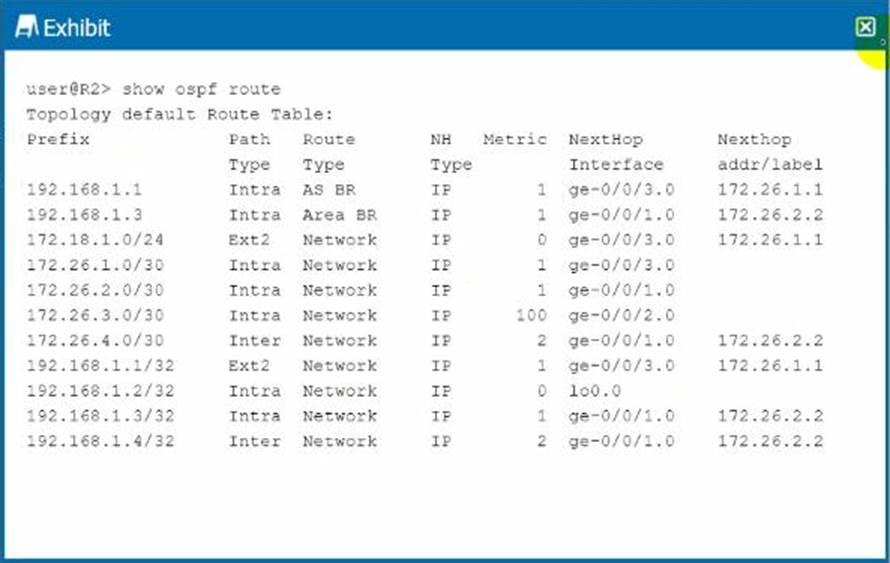

16. Exhibit

Which prefix in the output shown in the exhibit is an external prefix injected by an OSPF router?

192.168.1.3

172.18.1.0/24

192.108.1.4

172.26.4.0730

17. What are three well-known mandatory BGP attributes? (Choose three.)

next hop

origin

community

MED

AS path

18. How does a Junos device learn about MAC addresses when II is first connected to an Ethernet LAN?

The device sends out a network broadcast message asking tor all devices and MAC addresses on the network and stores this information In addition lo the interface from which the response was received.

The device learns the destination MAC addresses from traffic in the network and stores this MAC address in addition to the interface from which the traffic was received.

The device learns the source MAC addresses from traffic in the network and stores this MAC address in addition to the interface from which the traffic was received.

The device sends out a network multicast message asking for all devices and MAC addresses on the network and stores this Information in addition to the interface from which the response was received.

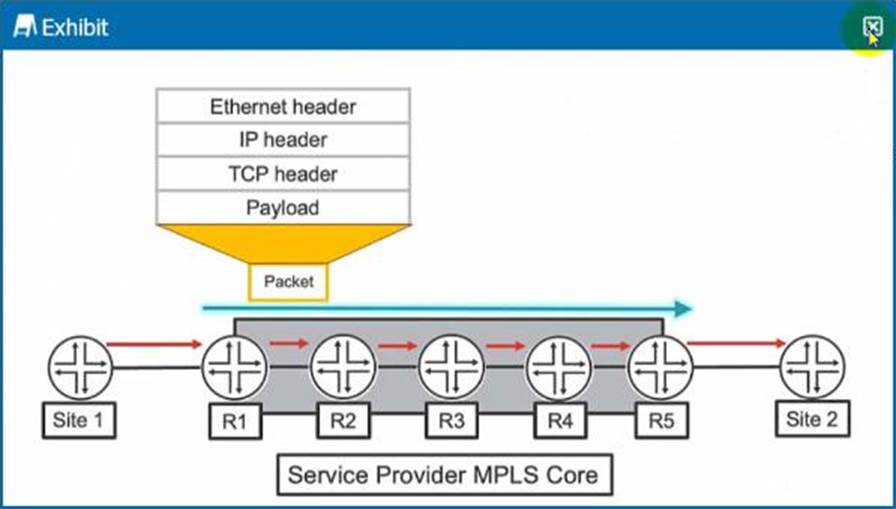

19. Exhibit

Which two statements ate correct about the actions taken as the packet traverses the service provider MPLS network from Site 1 to Site 2 as shown in the exhibit? (Choose two.)

R2 will perform a lookup using the mpls.0 table.

R1 will perform a lookup using the lnet.3 table.

R1 will perform a lookup using the mpls.0 table.

R2 will perform a lookup using the inet.3 table.

20. Which two statements ate correct about the community BGP attribute on a Junos device? (Choose two.)

The community attribute is a mandatory BGP attribute.

If the community attribute is present, it is ignored and deleted in the BGP updates.

If the community attribute is present, it should be passed unchanged in the BGP updates.

The community attribute is an optional BGP attribute.
